150M Pickup Mounted Auger Core Drilling Rig Versatile Use Screw Drill Tools

Product Description:

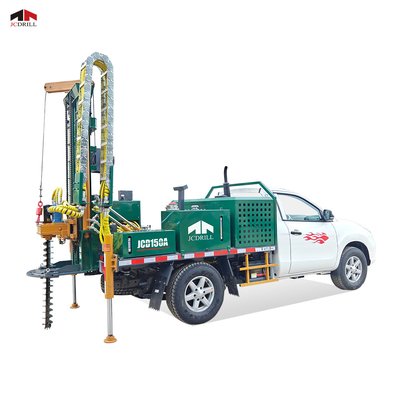

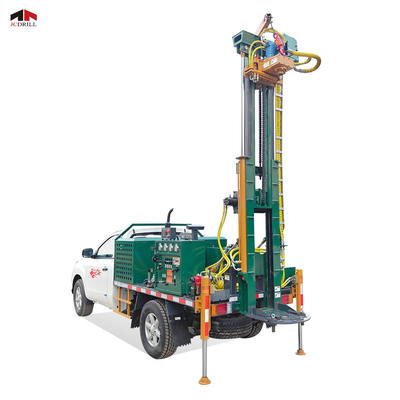

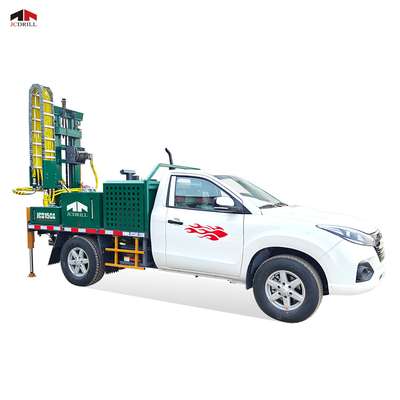

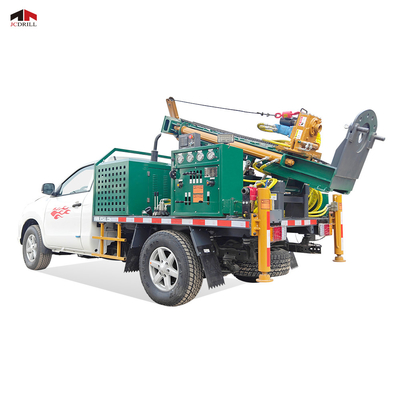

The JCD150A Pickup Auger Drilling Rig is a highly efficient and versatile drilling solution designed for shallow drilling applications such as soil sampling, water well drilling, and environmental testing. Mounted on a JMC 4x4 pickup truck, it provides excellent mobility and access to remote or confined locations. Equipped with a 40 kW Yunnei engine, a feed stroke of 2500 mm, and a hydraulic system featuring a Permco pump and Eaton motor, it ensures high drilling efficiency and smooth operation across various soil conditions.

Parameter:

Features:

• Exceptional Mobility & Compact Design
  Mounted on a JMC 4x4 pickup truck, the JCD150A is lightweight, compact, and highly maneuverable, making it perfect for operations in urban, remote, or confined work sites. Its ability to be easily transported without the need for trailers or heavy transport equipment saves time and logistics costs.
• Versatile Drilling Capabilities
  The rig is designed to handle a variety of drilling methods, including auger, air, and mud drilling, allowing users to adapt to different soil and geological conditions. It supports solid stem, hollow stem, and core sampling augers, making it ideal for soil sampling, environmental testing, and small water well drilling.
• Powerful & Efficient Performance
  Powered by a 40 kW Yunnei engine, the rig delivers a high drilling torque of 4500 Nm, ensuring efficient penetration even in challenging soil layers. The 12 m/min feed speed enhances productivity, while the 2500 mm feed stroke enables deep penetration per cycle, reducing downtime and improving overall efficiency.

• Robust Hydraulic System
  Equipped with a Permco hydraulic pump and Eaton motor, the rig provides consistent and reliable hydraulic power for smooth drilling operations. The system operates at 16 Bar pressure, ensuring stable feed force, high lifting capacity (10 tons), and efficient push-down capacity (3 tons).

​

• Durable & Eco-Friendly
  Built with high-strength materials, the JCD150A is designed to withstand harsh environments and extreme weather conditions. Its eco-friendly engine meets emission standards, ensuring low fuel consumption, reduced noise, and minimal environmental impact, making it suitable for operations in sensitive areas.

• Cost-Effective & Low Maintenance
  Compared to larger drilling rigs, the JCD150A offers a lower total cost of ownership due to its affordable maintenance, fuel efficiency, and easy servicing. The pickup-mounted design eliminates the need for additional transport costs, making it a budget-friendly solution for businesses looking to expand drilling capabilities without significant capital investment.

Applications:

Soil Sampling – Geological and environmental analysis.
Water Well Drilling – Small-scale water supply projects.
Environmental Testing – Groundwater and contamination assessments.
Construction & Agriculture – Foundation analysis and land improvement.

FAQs:

FAQs
1. What is the maximum drilling depth of the JCD150A?
The JCD150A can drill up to 150 meters.

2. What auger types can be used with this rig?
It supports solid stem, hollow stem, and core sampling augers, making it adaptable for various soil conditions.

3. How is the rig powered?
It features a 40 kW Yunnei engine with a water-cooled, 4-cylinder design.

4. What type of vehicle is the rig mounted on?
It is mounted on a JMC 4x4 pickup truck with a 125 HP engine and EU-2 emission standard compliance.

5. What is the feed stroke length?
The rig has a 2500 mm feed stroke, ensuring deep penetration per cycle.

6. How does the hydraulic system enhance performance?
It includes a Permco pump and Eaton motor, providing smooth, reliable operation with a feed speed of 12 m/min.

7. What is the rotation torque and speed?
4500 Nm torque with a 0-115 RPM rotation speed.

8. Is the rig easy to transport?
Yes, its pickup-mounted design makes it easy to move between sites.

9. How does the rig perform in tough environments?

The JCD150A is built for durability, withstanding harsh weather and rugged terrain.

10. What industries benefit from this rig?
Ideal for agriculture, construction, environmental testing, and water well drilling.
