| Brand Name: | JCDRILL |
| Model Number: | AK60 |
| MOQ: | 1Set |
| Price: | Negotation |
| Payment Terms: | T/T, L/C, D/P, Western Union, MoneyGram |
| Supply Ability: | 2000Set/year |
The AK-60 construction Anchor Drilling rig is a full hydraulic operated top drive power head drill, which is designed for drilling heavy duty pretension anchor holes at the side slope of water power station, railway, or highway projects. It is also used for drilling drainage holes and to prevent or solve geologic calamities such as landslides and rock collapses. Additionally, the rig can be used to drill small size water wells and high-pressure jet grouting holes.
The engineering drilling rig has been widely used in various projects, including water power stations located in Yunnan, Guangxi, Sichuan, Guizhou, and Hubei provinces. It has also been used in expressway projects such as Ningbo-Taizhou-Wenzhou in Zhejiang, Huangshan-Hangzhou in Zhejiang, and Dali-Baoshan in Yunnan. Due to its versatility and efficiency, it has become the first priority for medium-duty anchoring-reinforcing projects in China.
The construction drilling rig is an excellent equipment with a broad range of applications, high drilling capability, and fast drilling speed. It is also equipped with a powerful ability to eliminate accidents efficiently.

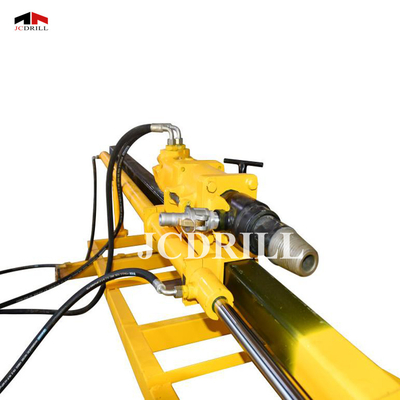

The top drive power head comes with an extension mechanism in the output spindle, which can effectively protect the drilling tools. It also increases the inclination angle range of the hole, and drills elevation angle holes successfully by setting the top drive power head and hole top plate towards the opposite direction.
The drill frame is integrated with a set of front-mounted adjustable columns, which can conveniently adjust the height of the mast front-end to align with the working position.
The rig structure is designed separately by a group, which ensures rapid and straightforward disassembly, mount, and transport. It also creates a better working environment, with lower labor strength and remote control and operation.
The mast can be fixed on staging immediately without drill frame, with auxiliary parts such as horizontal axle and buckles. This feature reduces rig weight and fastener transport effectively.
The construction drilling rig is equipped with imported hydraulic motors, high-quality products, and an excellent running performance. The wearing parts are standardized and series, ensuring good interchangeability, product reliability, and a long service life.
The equipment operates fully through hydraulic drive and is easy to operate, maintain, and has fewer wearing parts. It comes with a stepless shift mechanism.
The construction drilling rig can be used with various drilling methods such as carbide bit drilling, auger drilling, DTH hammer drilling, and follow-up casing drilling.
JCDRILL AK60 Portable Soil Drilling Machine is designed to provide effective drilling solutions for various occasions and scenarios. With its robust structure and advanced features, this portable drilling machine is ideal for applications such as:
With its ISO and CE certifications, customers can be assured of the quality and safety of the JCDRILL AK60 Portable Soil Drilling Machine. The product is manufactured in Hebei, China, and can be ordered with a minimum quantity of 1 set. The price is negotiable, and the machine is packaged for standard export ocean transportation. Delivery time will depend on the customer's location, and payment terms include T/T, L/C, D/P, Western Union, and MoneyGram. With a supply ability of 2000 sets per year, customers can be assured of timely delivery.
The AK60 model weighs 65kgs and has a working speed of 3600rpm. Its compact size and portability make it an excellent option for customers looking for a reliable and efficient portable drilling machine.
Q1: What is the brand name of the engineering drilling rig?
A1: The brand name of the engineering drilling rig is JCDRILL.
Q2: What is the model number of the engineering drilling rig?
A2: The model number of the engineering drilling rig is AK60.
Q3: Where is the engineering drilling rig manufactured?
A3: The engineering drilling rig is manufactured in Hebei, China.
Q4: Does the engineering drilling rig come with any certification?
A4: Yes, the engineering drilling rig comes with ISO and CE certification.
Q5: What are the payment terms for purchasing the engineering drilling rig?
A5: The payment terms for purchasing the engineering drilling rig include T/T, L/C, D/P, Western Union, and MoneyGram.
