| Brand Name: | JCDRILL |
| Model Number: | 40x3000mm |
| MOQ: | 1 |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20000pieces/week |
Specification
| Size (Out Diameter) |
(0.80 Mpa) | (1.0 Mpa) | (1.25 Mpa) | (1.6 Mpa) | (2.0 Mpa) | ||||||
| mm | Inch | Weight | Thickness | Weight | Thickness | Weight | Thickness | Weight | Thickness | Weight | Thickness |
| Kgs/m | mm | Kgs/m | mm | Kgs/m | mm | Kgs/m | mm | Kgs/m | mm | ||
| 40 | 1.25 | 0.41 | 2 | 0.47 | 2.4 | 0.56 | 3 | 0.68 | 3.7 | ||
| 50 | 1.5 | 0.5 | 2 | 0.58 | 2.4 | 0.72 | 3 | 0.85 | 3.7 | 1.06 | 4.6 |
| 63 | 2 | 0.79 | 2.5 | 0.95 | 3 | 1.15 | 3.8 | 1.41 | 4.7 | 1.68 | 5.8 |
| 75 | 2.5 | 1.07 | 2.9 | 1.3 | 3.6 | 1.63 | 4.5 | 1.9 | 5.6 | 2.39 | 6.9 |
| 90 | 3 | 1.53 | 3.5 | 1.88 | 4.3 | 2.33 | 5.4 | 2.8 | 6.7 | 3.41 | 8.2 |
| 110 | 4 | 1.87 | 3.4 | 2.23 | 4.2 | 2.82 | 5.3 | 3.4 | 6.6 | 4.2 | 8.1 |
| 125 | 4.5 | 2.41 | 3.9 | 2.95 | 4.8 | 3.33 | 6 | 4.44 | 7.4 | 5.4 | 9.2 |
| 160 | 6 | 3.89 | 4.9 | 4.8 | 6.2 | 5.97 | 7.7 | 7.24 | 9.5 | 8.87 | 11.8 |
| 200 | 8 | 6.14 | 6.2 | 7.3 | 7.7 | 9.31 | 9.6 | 11.19 | 11.9 | 13.84 | 14.7 |
| 225 | 9 | 7.69 | 6.9 | 9.1 | 8.6 | 11.97 | 10.8 | 14.41 | 13.4 | 17.53 | 16.6 |
| 250 | 10 | 9.51 | 7.7 | 11.4 | 9.6 | 14.4 | 11.9 | 17.7 | 14.8 | 21.61 | 18.4 |
| 280 | 11 | 11.88 | 8.6 | 14.7 | 10.7 | 18.2 | 13.4 | 22.19 | 16.6 | 27.08 | 20.6 |
| 315 | 12 | 15.09 | 9.7 | 18 | 12.1 | 22.89 | 15 | 28.17 | 18.7 | 34.31 | 23.2 |
Production
Material

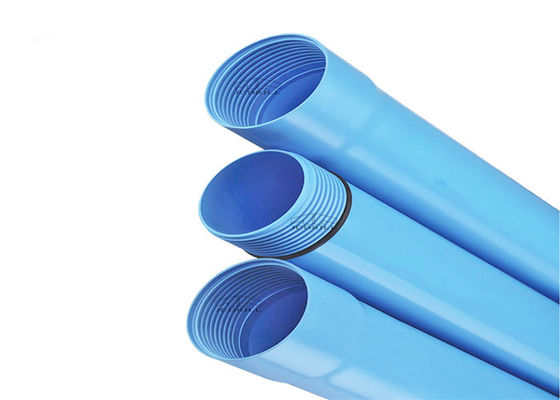

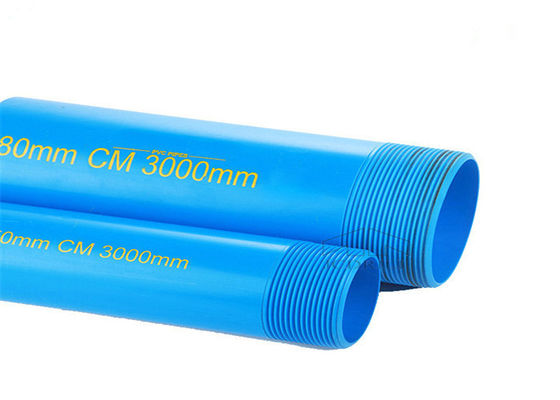

PVC-U, unplasticised polyvinyl chloride is an ideal material for manufacturing well pipes as it is impervious
to corrosion and chemical action, easy to handle and install, light in weight, non-toxic, and non-conductive.
Its long service life makes it an economical choice over other materials.
Application
FAQ
Q: Are you original manufacturer?
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.
Q: Which payment terms are available to us?
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment.On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.
Q: How long will the delivery time take?
A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.
Q: How about after sales service?
A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."
Q:Spare Parts When You Need Them
A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
