| Brand Name: | JKDRILL |
| Model Number: | JKD4000S |
| MOQ: | 1Set |
| Price: | Negotation |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 2000Set/Year |
350m Fully Hydraulic Underground Diamond Core Drilling Rig JKD4000S
Application
The small, compact design of the JKD series underground core drilling rig for narrow spaces makes it ideal for use in narrow tunnels or in galleries. Quick and easy to set up, the JKD series core drilling rig’s mechanized rod handling, hinge-mounted rod holder, and rotation unit mean flexible, efficient drilling.
Characteristics
1. It is separate in structure, small in size, light in weight, flexible in movement and convenient in operation.
2. The hydraulic pump is driven by explosion-proof electric motor through operating system, then the hydraulic pump enforces hydraulic motor to make drill head rotate, and at the same time, the movement of drill head is realized by oil cylinder & chain double speed mechanism.
3. Hydraulic chuck can satisfy the function of shackles and power-off protection.
4. The sliding and extending & retracting function of the mast makes it convenient for the bottom of mast to touches the ground or platform, thus the drill rig will be more stable.
5. The swinging arm and mast can do luffing movement, which satisfy the request of multi-angle drilling.
6. The range of spindle rotating speed is wide and the torque is large.
Specification
| Description | JKD1250S | JKD1900S | JKD3200S | JKD4000S |
| Depth capacity(m) | 10-200 | 10-250 | 10-300 | 10-350 |
| Drill Hole Size | 75-133mm | 75-133mm | 75-133mm | 75-133mm |
| Drill Rod Size | Φ42/Φ50/Φ63 | 63-76 | 63-76 | 63-76 |
| Drill rod length(m) | 1 | 1 | 1 | 1 |
| Max torque(N.m) | 1250 | 1900 | 3200 | 4000 |
| Max Rotation speed(rpm) | 50-250 | 50-270 | 50-210 | 50-280 |
| Feed force(KN) | 36 | 77 | 77 | 100 |
| Pull back Capacity(KN) | 52 | 112 | 112 | 150 |
| Power | 22 | 37 | 37/45 | 55 |

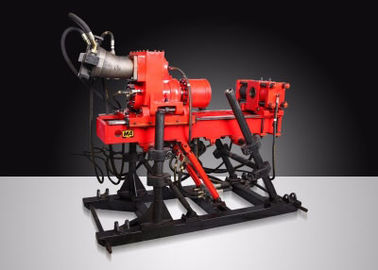

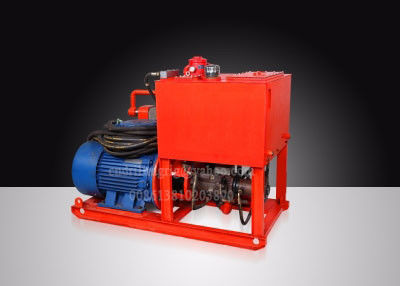

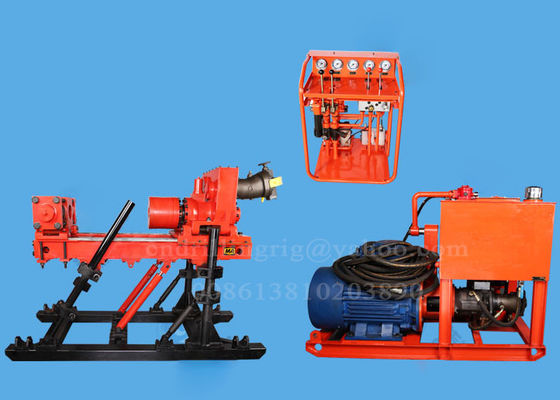

Main Parts
Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
