CWD2600 Deep Borewell Crawler Drilling Rig Fully Hydraulic System JCDRILL

Product Description:

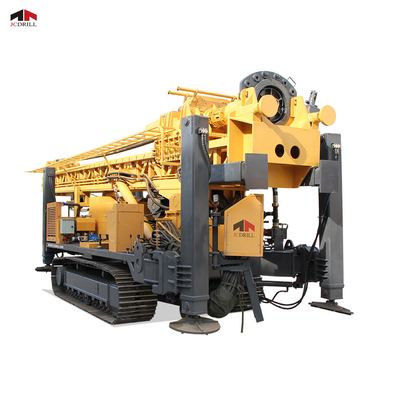

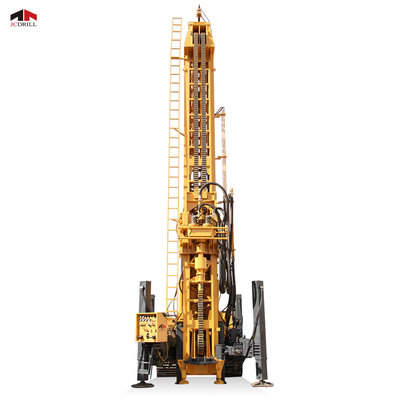

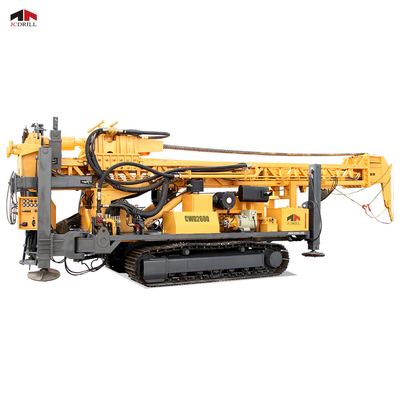

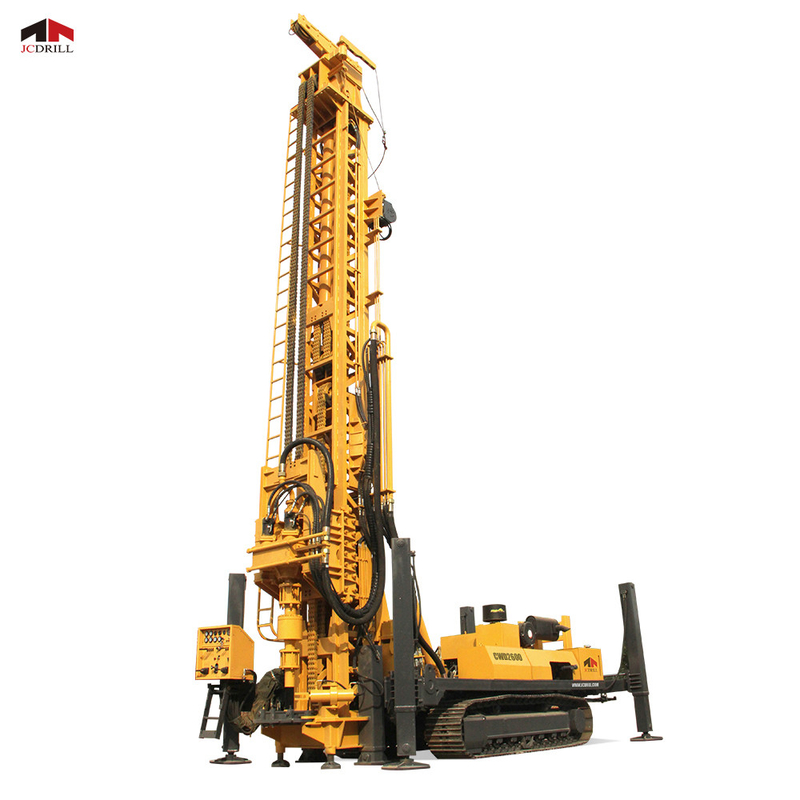

The CWD2600 Multi-Functional Track-Mounted Water Well Drilling Rig is a high-performance, full-hydraulic drilling rig designed for deep well drilling and geological exploration. It is widely used in industrial and agricultural water wells, geothermal wells, foundation projects, and national defense applications. Equipped with a powerful 410 kW engine and a high-torque turntable, it efficiently handles various geological formations, using mud rotary drilling for soft layers and air DTH hammer drilling for rock. The CWD2600 achieves up to ten times the efficiency of traditional rotary drilling, thanks to its ability to discharge slag via air or mud pressure.

Parameter:

Features:

​

• High Efficiency and Powerful Performance

The CWD2600 is equipped with a 410 kW engine and a high-torque turntable (40,000 Nm forward / 36,000 Nm reverse), ensuring rapid penetration and excellent adaptability in deep drilling operations.
With a feed speed of 10-25m/h, it efficiently drills in both soft and hard formations, reducing project time and labor costs.

• Versatile Drilling Capabilities

This rig supports DTH air drilling and mud rotary drilling, allowing for smooth operation across various geological conditions.
The wide drilling diameter range (140-1200mm) and maximum drilling depth of 2600m make it ideal for deep water wells, geothermal projects, and complex foundation drilling.

• Superior Efficiency in Rock Drilling

The air DTH hammer drilling system significantly boosts efficiency, making the CWD2600 up to 10 times faster than conventional rotary drilling rigs in rock formations.
High-pressure air discharge technology efficiently removes slag, ensuring continuous and smooth drilling in hard rock environments.

• Ideal for Deep and Complex Drilling Projects

The rig features adjustable axis pressure (0-1600 KN) and a rotary head stroke of 14,000mm, enabling it to handle complex geological conditions with ease. It can adapt to unconsolidated formations, ensuring stable drilling and reduced equipment wear in deep and challenging projects.

• Advanced Hydraulic System for Stability and Control

The high-pressure hydraulic clamp (φ102-φ273mm) ensures secure and precise drill pipe handling. Its strong lifting force of 1360KN allows for smooth operation and increased stability in deep drilling applications.

• Robust Track-Mounted Design for Tough Terrain

The crawler travel system allows for easy mobility in remote or uneven terrain, with a travel speed of 5 km/h and 21° gradeability, making it perfect for off-road drilling sites.
The heavy-duty construction ensures durability in harsh environments, extending the rig’s lifespan.

• Heavy-Duty Build for Long-Term Reliability

Designed with high-strength steel components, the CWD2600 is built to withstand extreme drilling conditions.
Low maintenance requirements and fuel-efficient operation make it a cost-effective choice for large-scale drilling projects.

Applications:

• Water Well Drilling (Industrial & Agricultural)

Suitable for drilling deep water wells in farmlands, rural communities, and industrial sites.
Capable of drilling in both soft and hard formations, ensuring reliable and sustainable water sources.

• Geothermal Well Drilling

Used for geothermal energy extraction, supporting clean and renewable energy projects.
The ability to drill at depths up to 2600m makes it ideal for deep geothermal applications.

• Foundation and Construction Projects

Essential for national defense, infrastructure development, and large-scale foundation drilling.
High torque and lifting force make it suitable for heavy-duty foundation work.

• Geological Exploration & Mineral Extraction

The rig’s DTH and mud drilling capabilities make it perfect for geological surveys and mineral exploration.
Enables efficient drilling in remote locations with limited road access.

• Oil and Gas Pre-Drilling

Can be used for preliminary drilling in oil and gas fields, particularly in hard rock terrains.
The fast drilling speed and efficient slag removal improve exploration efficiency.

FAQs:

Q1: What is the maximum drilling depth of the CWD2600?
A: The CWD2600 can drill up to 2600 meters, making it ideal for deep water well drilling and geological exploration.

Q2: What drilling methods does the CWD2600 support?
A: It supports mud rotary drilling for soft layers and air DTH hammer drilling for rock formations, offering maximum versatility.

Q3: How efficient is the CWD2600 compared to traditional rotary drilling rigs?
A: The air DTH hammer drilling system allows the CWD2600 to drill up to 10 times faster than conventional rotary drilling, especially in hard rock conditions.

Q4: Can this rig operate in remote or off-road locations?
A: Yes, the crawler-mounted design and 5 km/h travel speed enable it to navigate rough terrains and remote drilling sites with ease.

Q5: What is the power system of the rig?
A: The CWD2600 is powered by a 410 kW engine with a rated speed of 1800 R/min, delivering high torque and stable drilling performance.

Q6: What types of projects is this rig best suited for?
A: The rig is ideal for deep water well drilling, geothermal projects, geological exploration, foundation drilling, and oil & gas pre-drilling.

Q7: What is the main advantage of the hydraulic system?
A: The high-pressure hydraulic system provides smooth operation, precise drill control, and high lifting force, improving overall efficiency and safety.

Q8: How does the rig handle different geological conditions?
A: The CWD2600’s adjustable axis pressure (0-1600KN) and multi-drilling technology allow it to adapt to soft, medium, and hard formations seamlessly.

Q9: How does the CWD2600 manage slag discharge?
A: The rig uses mud circulation for soft formations and air pressure for hard rock, ensuring efficient slag removal and faster drilling.

Q10: What is the overall weight and size of the rig?
A: The CWD2600 weighs 45 tons, with shipping dimensions of 13,900×2,900×3,800mm, ensuring stability and durability during operations.
