| Brand Name: | JCDRILL |
| Model Number: | TWD300 water well drilling rig |
| MOQ: | 1Set |
| Price: | Negotation |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 2000set/year |

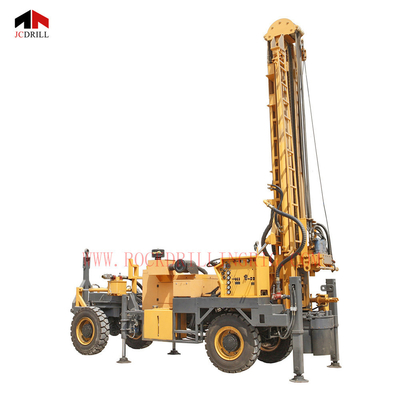

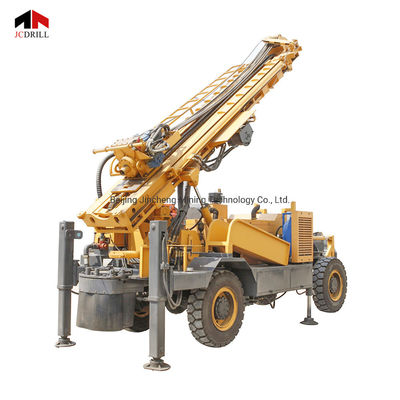

Borehole Water Well Drilling Rig Mud and Rock Drilling Rig
>> Introduction
>> TWD300 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the
slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air.
>> TWD300 Multi-functional trailer mounted water well drilling rig is a efficient,multifunction full hydraulic water well drilling rig.It
is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national
defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
>> Characteristic
>> The drilling rig can use air DTH Hammer drilling and mud drilling.
>> Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time
and enhance the work efficiency.
>> The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set
up on the chassis.
>> .It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry
as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable
drilling bit.
>> The power of drilling rig comes from a Yuchai engine,92kw Yuchai engine drives the large displacement high pressure
plunger pump and it is characterized by powerful dynamic and stable performance
>> Specification
| General | |||
| 1 | Geology drilled | All kinds | |
| 2 | Drilling Type | DTH & Mud Rotary | |
| 3 | Drill system and operation | Hydraulic | |
| 4 | Hole Diameter | mm | Φ105-Φ350 |
| 5 | Hole Depth | m | 300 |
| 6 | Rotation Torque | Nm | 7500 |
| 7 | Rotation Speed | rpm | 0-80 1st Gear |
| 0-160 2nd Gear | |||
| 8 | Drill pipe diameter | mm | 89/114 |
| 9 | Drill pipe length | mm | 3000 |
| 10 | Most. Feed Speed | M/min | 18 |
| 11 | Most. Lifting Speed | M/min | 5-20 |
| 12 | Feed Stroke | mm | 3400 |
| 11 | Most. Lifting force | N | 120000 |
| 12 | Lifting force of Main winch(Optional) | T | 4 |
| 13 | Lifting force of hoist | T | 1.5 |
| 14 | Lifting height of tool winch | m | 6 |
| Engine | |||
| 15 | Diesel Engine type | CMS | |
| 16 | Rated Horse power | Kw | 92 |
| 17 | Electrical System | Volt | 24 |
| Compressor required | |||
| 18 | Compressor Type | Rotary Screw/Movable | |
| 19 | Pressure Required | Mpa | 1.2-3.5 |
| 20 | Air consumption | m³/min | 16-40 |
| Mud Pump(Optional) | |||
| 21 | Type | Hydraulic | |
| 22 | Model | BW450 | |
| 23 | Stroke | mm | 100 |
| 24 | Displacement | L/Min | 250 |
| 25 | Discharge pressure (Mpa) | Mpa | 2.5 |
| 26 | Suction tube diameter | mm | 85 |
| 27 | Discharge pipe diameter | mm | 51 |
| 28 | Foam pump | Optional | |
| Dimension | |||
| 29 | Net Weight | KG | 6100 |
| 30 | Shipping Length | mm | 5800 |
| 31 | Shipping Width | mm | 2210 |
| 32 | Shipping Height | mm | 2850 |
| 33 | Ground Clearance | mm | 300 |
| 34 | Volume of Flow | mm | 200 |
