| Brand Name: | JCDRILL |
| Model Number: | TWD200 |
| MOQ: | 1 set |
| Price: | USD18500-22000 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000 sets per year |

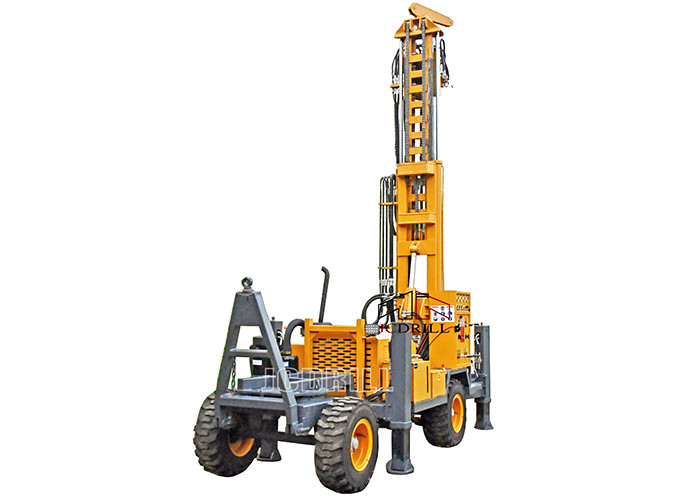

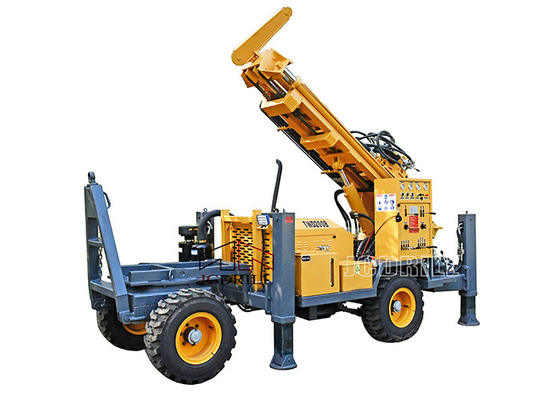

4 wheels trailer mounted hydraulic water well drilling machine
>> Specification
| Specification | Unit | TWD180 | TWD200 |
| Geology drilled | All Kind | All Kind | |
| Drilling Type | DTH&MUD | DTH&MUD | |
| Drill system and operation | Hydraulic | Hydraulic | |
| Hole Diameter | mm | Φ90—Φ305 | Φ90—Φ355 |
| Hole Depth | m | 180 | 200 |
| Rotation Torque | Nm | 4200-5600 | 4200-5600 |
| Rotatin Speed | rpm | 45-115 | 0-115 |
| Drill pipe diameter | mm | 76/89/102 | 76/89/102 |
| Drill pipe length | mm | 3000 | 3000 |
| Max.Feed Speed | M/min | 2-17 | 2-17 |
| Max.lifting Speed | M/min | 1.5-12.4 | 1.5-12.4 |
| Feed Stroke | mm | 350 | 350 |
| Max.Pull back Capacity | T | 12 | 14 |
| lifting force of Winch | T | 1.2(Optional) | 1.5 |
| Engine | |||
| Diesel Engine type | 4Cylinder,water cooling | 4Cylinder,water cooling | |
| Diesel Engine Brand | Quanchai | Yuchai | |
| Rated Horse power | Kw | 55 | 77 |
| Compressor required (Optional) | |||
| Pressure Required | Mpa | 15-30 | 15-30 |
| Air consumption | m³/min | 1.5-2.5 | 1.5-2.5 |
| Mud Pump(Optional/Separate) | |||
| Model | BW250 | BW250/BW450 | |
| Displacement | L/Min | 250/450 | |
| Discharge pressure(Mpa) | Mpa | 2.5-7 | 2.5-7/2-5 |
| Trailer | |||
| Trailer Type | 4 wheels trailer,front wheels with steering | ||
| Mobility | Towed by pickup or light truck | ||
| Dimension | |||
| Net Weight | T | 3750 | 4100 |
| Shipping LXWXH | mm | 4000*1820*2150 | 4150*1850*2160 |
| Ground Clearance | mm | 300 | 305 |
>> Characteristic
 |
77KW,4Cylinder,water cooling Diesel Engine
Famous Brand Hydraulic System |
|
Big Torque & Fast Rotation Speed |
|
|
JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.
We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.
With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.
|
