| Brand Name: | JCDRILL |
| Model Number: | TWD200 |
| MOQ: | 1 set |
| Price: | USD18000-22000 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000 sets per year |

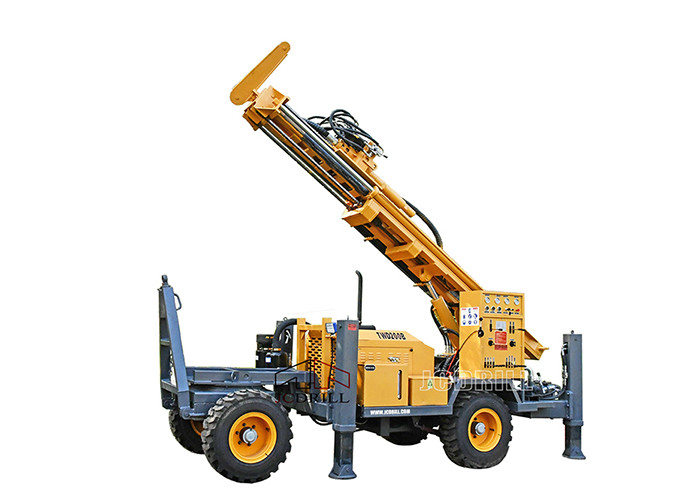

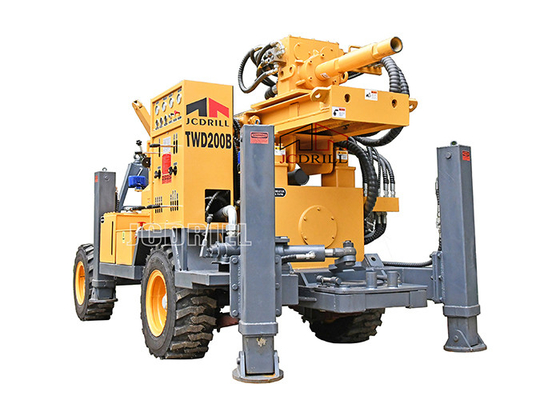

200m trailer mounted 77Kw diesel engine water well drilling machine
>> Introduction
TWD Series Multi-functional trailer mounted water well drilling rig is a efficient,multi-function full hydraulic water welldrilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
>> TWD series trailer mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
>> TWD series deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
>> Specification
| Specification | Unit | TWD180 | TWD200 |
| Geology drilled | All Kind | All Kind | |
| Drilling Type | DTH&MUD | DTH&MUD | |
| Drill system and operation | Hydraulic | Hydraulic | |
| Hole Diameter | mm | Φ90—Φ305 | Φ90—Φ355 |
| Hole Depth | m | 180 | 200 |
| Rotation Torque | Nm | 4200-5600 | 4200-5600 |
| Rotatin Speed | rpm | 45-115 | 0-115 |
| Drill pipe diameter | mm | 76/89/102 | 76/89/102 |
| Drill pipe length | mm | 3000 | 3000 |
| Max.Feed Speed | M/min | 2-17 | 2-17 |
| Max.lifting Speed | M/min | 1.5-12.4 | 1.5-12.4 |
| Feed Stroke | mm | 350 | 350 |
| Max.Pull back Capacity | T | 12 | 14 |
| lifting force of Winch | T | 1.2(Optional) | 1.5 |
| Engine | |||
| Diesel Engine type | 4Cylinder,water cooling | 4Cylinder,water cooling | |
| Diesel Engine Brand | Quanchai | Yuchai | |
| Rated Horse power | Kw | 55 | 77 |
| Compressor required (Optional) | |||
| Pressure Required | Mpa | 15-30 | 15-30 |
| Air consumption | m³/min | 1.5-2.5 | 1.5-2.5 |
| Mud Pump(Optional/Separate) | |||
| Model | BW250 | BW250/BW450 | |
| Displacement | L/Min | 250/450 | |
| Discharge pressure(Mpa) | Mpa | 2.5-7 | 2.5-7/2-5 |
| Trailer | |||
| Trailer Type | 4 wheels trailer,front wheels with steering | ||
| Mobility | Towed by pickup or light truck | ||
| Dimension | |||
| Net Weight | T | 3750 | 4100 |
| Shipping LXWXH | mm | 4000*1820*2150 | 4150*1850*2160 |
| Ground Clearance | mm | 300 | 305 |
>> FAQ
|
Q: Are you original manufacturer?
|
Q: Which payment terms are available to us? | Q: Which Incoterms 2010 terms can we work? |
|
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.
|
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted. |
A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
|
| Q: How long will the delivery time take? | Q: How about after sales service? | Q:Spare Parts When You Need Them |
|
A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.
|
A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours." |
A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
|
