| Brand Name: | JCDRILL |
| Model Number: | JXY200T |
| MOQ: | 1set |
| Price: | Negotation |
| Payment Terms: | T/T, Western Union, D/A, D/P, MoneyGramm,L/C |
| Supply Ability: | 3000sets/year |

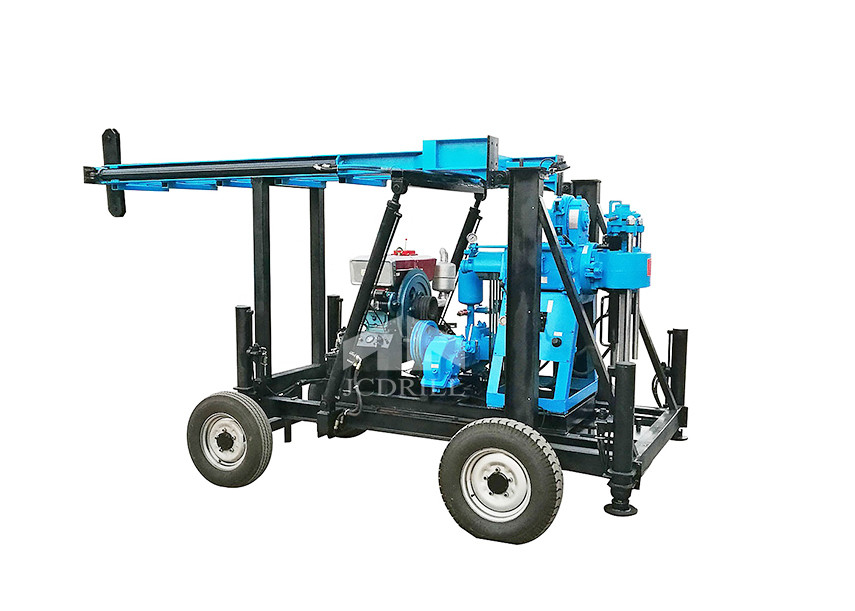

Diamond Rock Drilling Rig 200m Borehole Water Well Drilling Rig

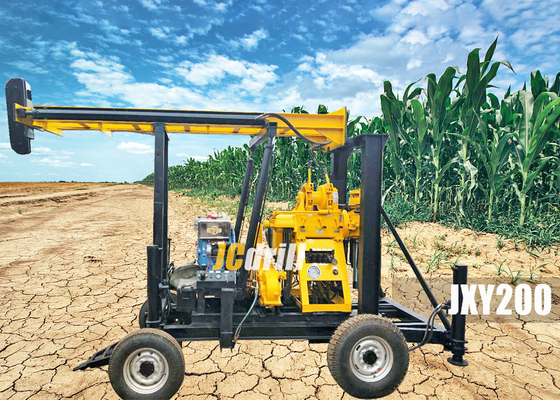

| JXY200 Hydraulic drilling rig machine adopts the latest design with trailer mounted mobile base, mechanical transmission and hydraulic operation system. It is equipped with three-wing bit, alloy bit and diamond bit for different geological formations, such as soil, sand, gravel, granite, hard rock, etc.The rig for the high-speed drilling machine is suitable for the exploration, geophysical exploration, road and building exploration and blasting hole drilling engineering, etc. | |
>> Characteristics
1. Exploration for foundation engineering;
2. Construction;
3. Water well or geotechnical survey drilling for caliber within diameter 600mm;
4. Holes for inspection, rescue, project quality test as well as geological exploration and coal field prospecting;
Power Supply
It can be driven by either electric motor or diesel engine.
| 1.Overall parameters | |
| Drilling depth | 200m |
| Maximum open hole caliber | 400mm |
| End hole caliber | 75mm |
| Diameter of drill rod | 50mm |
| Drilling angle | 90~75 |
| Weight(not include power) | 760kg |
| Dimension | 2750*950*1600mm |
| 2. Vertical shaft | |
| Rotating speed | 71,142, ,310,,620r/min |
| Feeding stroke | 450mm |
| 3.Hoist | |
| Maximum. single line hoisting capacity | 2400Kg |
| Diameter of wire rope | 13mm |
| Volume of winding drum | 35m |
| Hug floodgate caliber | 230mm |
| Hug floodgate belt width | 70mm |
| 4.Mud pump | |
| Type | Horizontal single urn twin-action |
| Rate of flow | 180L/min |
| Maximum. pressure | 1.5MPa |
| Working pressure | 0.7MPa |
| Diameter of water inlet tube | 50mm |
| Diameter of water outlet tube | 45mm |
| 5.Power | |
| Diesel engine | 22HP, 2200r/min |
| Electrical motor | 15KW, 1460r/min |
>> Package & Shipment
>> About JCDRILL
|
JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.
We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.
With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.
|
