| Brand Name: | JCDRILL |
| Model Number: | JXY180 |
| MOQ: | 1set |
| Price: | Negotation |
| Payment Terms: | T/T, Western Union, D/A, D/P, MoneyGramm,L/C |
| Supply Ability: | 3000sets/year |

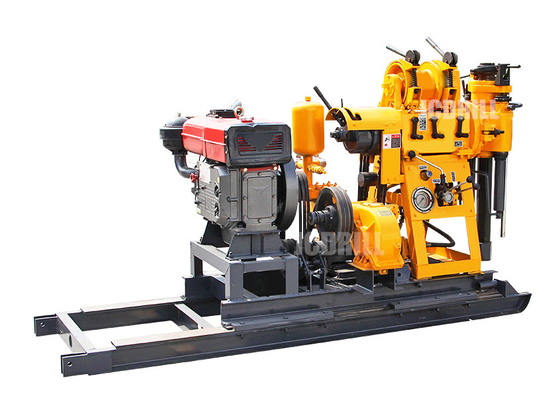

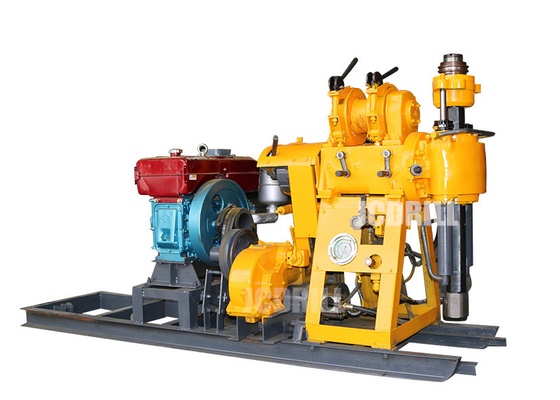

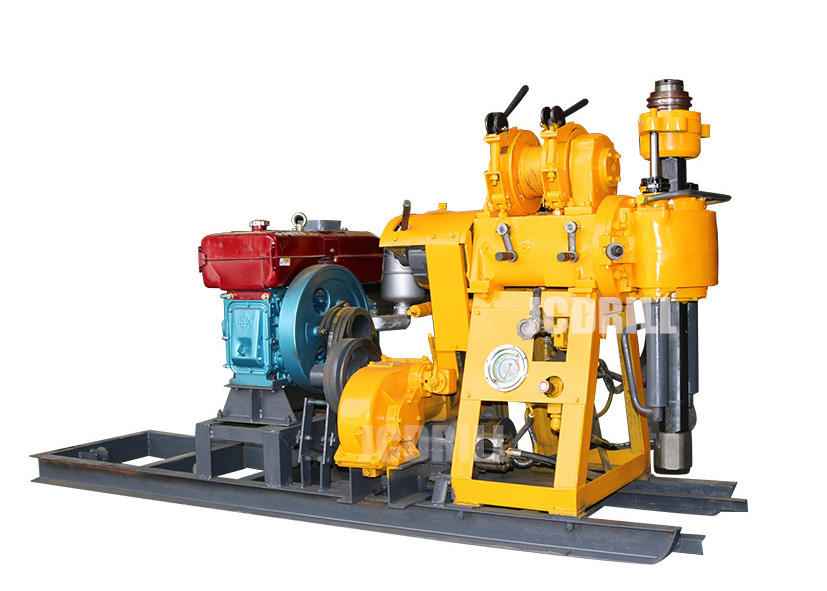

Popular portable skid mounted JXY180 borehole rock water well drilling machine water well drilling rig
>> Introduction
JXY180 type drill based on the ordinary drill increase drill shift chute, which can realize quick change tool to improve the work efficiency to reduce Labour intensity. The rig for the high-speed drilling machine is suitable for the exploration, geophysical exploration, road and building exploration and blasting hole drilling engineering, etc.
It can be selected according to the underlying different alloy, diamond, compact drill for drilling, etc. Level 3, 2-9 drilling, sandy clay and rock formations, etc.
Having hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity.
Using the ball card holding mechanism to replace chuck, can implement non-stop down rod, convenient operation, safe and reliable. Hoist with cage, forms the double support structure of the star wheel, can withstand strong shock.
Four groups of axle box bearing positioning, keep gyrator rigid enough deal with gravel layer, complex geological conditions, such as pebble layer.
The machine adopts taper clutch of national patent technology, has the big transmission torque, easy to operate, the prominent characteristics of free maintenance.
>> Characteristic
>> Specification
| Item. | JXY130 | JXY180 | JXY200 |
| Drilling depth(m) | 130m | 180m | 200m |
| Max.Hole dia soil/rock(mm) | 500, 220 | 500, 220 | 500, 273 |
| End Hole Diameter(mm) | 75 | 75 | 75 |
| Drill Rod diameter(mm) | 42, 60 | 42, 60 | 42, 50, 60 |
| Drill Angle | 90-75 | 90-75 | 90-75 |
| Weight without engine(kg) | 600/740 | 620/750 | 880/970 |
| Machine Dimension(m) | 2.4*0.8*1.3 | 2.4*0.8*1.4 | 2.7*0.9*1.5 |
| Power | |||
| Engine power(KW) | 13.2 | 13.2 | 15 |
| Spindle | |||
| Speed(r/min) | 142/285/570 | 130/300/480/730/830/1045 | 64/128/287/557 |
| Stroke(mm) | 450 | 450 | 450 |
| Hoist | |||
| Single rope lift force(kg) | 1800 | 2100 | 2500 |
| Single rope lift speed(m/s) | 0.41-1.64 | 0.35-2.23 | 0.12-0.95 |
| Rope diameter(mm) | 9.3 | 9.3 | 12.5 |
| Rope capacity(m) | 27 | 27 | 35 |
| Drill Mast | |||
| Rated load (Kgs) | 2000 | 2000 | 5000 |
| Effective height(m) | 6 | 6 | 6 |
| Mud Pump | |||
| Flow(L/MIN) | 95 | 95 | 145 |
| Max. pressure(Mpa) | 1.2 | 1.2 | 2 |
| Back and forth times/min | 93 | 93 | 93 |
| Inlet hose dia.(mm) | 51 | 51 | 51 |
| Outlet hose dia.(mm) | 32 | 32 | 32 |
>> Package & Shipment
>> Our Service
|
>> Pre-sale service Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement. >> Select suitable model & matched equipment. >> Strong technical support. Reply clients' questions within 24 hours. |
>> Service During Sales We have responsible team from raw material to finished products, and guarantee 100% pass rate. >> Design and manufacture products basis of client's special equirement >> Inspect each machine & matched accessories strictly before delivery >> Timely inform client of production progress. |
>> After Sales Service We're always with you in after-sale service. >> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.
|
>> About us
 |
JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.
We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.
With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also. |
