| Brand Name: | JCDRILL |
| Model Number: | JXY130 |
| MOQ: | 1 set |
| Price: | USD9000-12000/set |
| Payment Terms: | T/T |
| Supply Ability: | 2000sets per year |

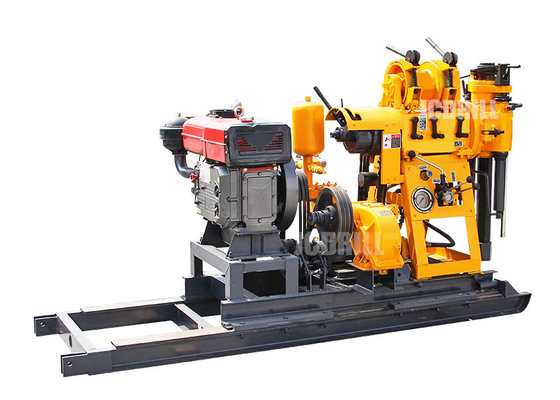

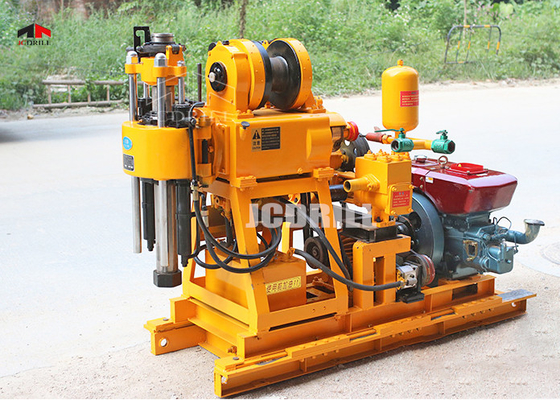

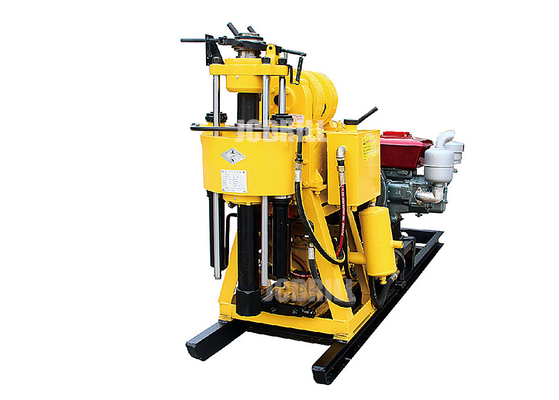

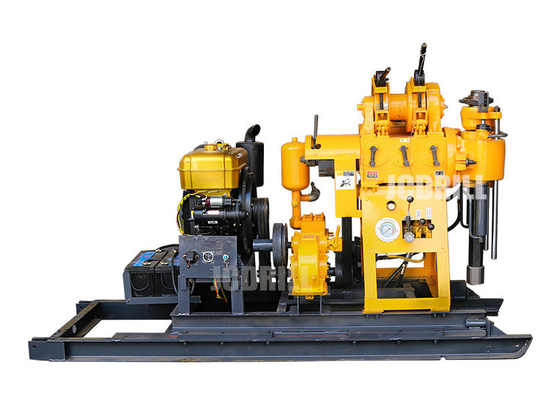

130m light weight vertical spline water well drilling machine for soil and rocks
>> Introduction
JXY130 type drill based on the ordinary drill increase drill shift chute, which can realize quick change tool to improve the work efficiency to reduce Labour intensity. The rig for the high-speed drilling machine is suitable for the exploration, geophysical exploration, road and building exploration and blasting hole drilling engineering, etc.
It can be selected according to the underlying different alloy, diamond, compact drill for drilling, etc. Level 3, 2-9 drilling, sandy clay and rock formations, etc.
Having hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity.
Using the ball card holding mechanism to replace chuck, can implement non-stop down rod, convenient operation, safe and reliable. Hoist with cage, forms the double support structure of the star wheel, can withstand strong shock.
Four groups of axle box bearing positioning, keep gyrator rigid enough deal with gravel layer, complex geological conditions, such as pebble layer.
The machine adopts taper clutch of national patent technology, has the big transmission torque, easy to operate, the prominent characteristics of free maintenance.
>> Characteristic
>> Specification
| Item. | JXY130 | JXY180 | JXY200 |
| Drilling depth(m) | 130m | 180m | 200m |
| Max.Hole dia soil/rock(mm) | 500, 220 | 500, 220 | 500, 273 |
| End Hole Diameter(mm) | 75 | 75 | 75 |
| Drill Rod diameter(mm) | 42, 60 | 42, 60 | 42, 50, 60 |
| Drill Angle | 90-75 | 90-75 | 90-75 |
| Weight without engine(kg) | 600/740 | 620/750 | 880/970 |
| Machine Dimension(m) | 2.4*0.8*1.3 | 2.4*0.8*1.4 | 2.7*0.9*1.5 |
| Power | |||
| Engine power(KW) | 13.2 | 13.2 | 15 |
| Spindle | |||
| Speed(r/min) | 142/285/570 | 130/300/480/730/830/1045 | 64/128/287/557 |
| Stroke(mm) | 450 | 450 | 450 |
| Hoist | |||
| Single rope lift force(kg) | 1800 | 2100 | 2500 |
| Single rope lift speed(m/s) | 0.41-1.64 | 0.35-2.23 | 0.12-0.95 |
| Rope diameter(mm) | 9.3 | 9.3 | 12.5 |
| Rope capacity(m) | 27 | 27 | 35 |
| Drill Mast | |||
| Rated load (Kgs) | 2000 | 2000 | 5000 |
| Effective height(m) | 6 | 6 | 6 |
| Mud Pump | |||
| Flow(L/MIN) | 95 | 95 | 145 |
| Max. pressure(Mpa) | 1.2 | 1.2 | 2 |
| Back and forth times/min | 93 | 93 | 93 |
| Inlet hose dia.(mm) | 51 | 51 | 51 |
| Outlet hose dia.(mm) | 32 | 32 | 32 |
>> Our Service
|
>> Pre-sale service Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement. >> Select suitable model & matched equipment. >> Strong technical support. Reply clients' questions within 24 hours. |
>> Service During Sales We have responsible team from raw material to finished products, and guarantee 100% pass rate. >> Design and manufacture products basis of client's special equirement >> Inspect each machine & matched accessories strictly before delivery >> Timely inform client of production progress. |
>> After Sales Service We're always with you in after-sale service. >> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.
|
>> FAQ
|
Q: Are you original manufacturer?
|
Q: Which payment terms are available to us? | Q: Which Incoterms 2010 terms can we work? |
|
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.
|
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted. |
A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
|
| Q: How long will the delivery time take? | Q: How about after sales service? | Q:Spare Parts When You Need Them |
|
A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.
|
A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours." |
A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
|
