CWD200 Multi-functional track mounted water well drilling rig
CWD200 Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
|
|
|

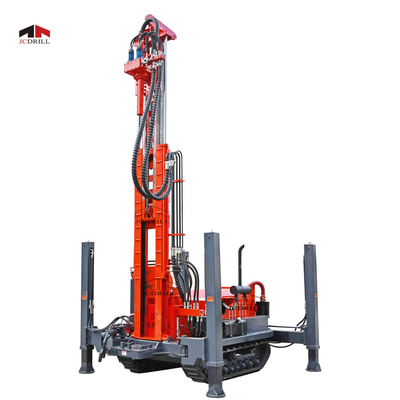

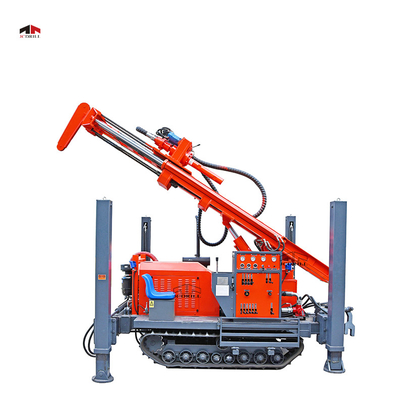

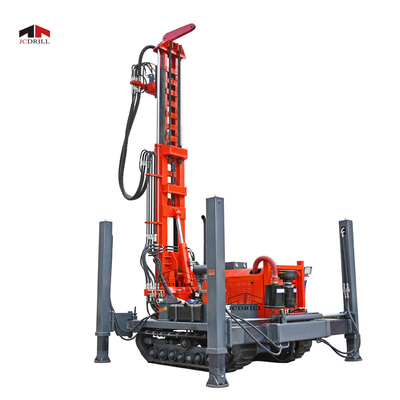

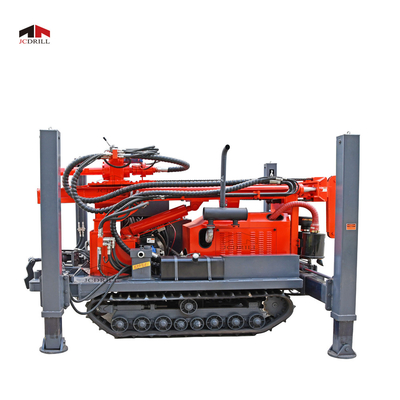

| Right elevation | Left elevation | Front elevation |
PRODUCTS SPECIFICATION
| Specification | Unit | CWD200 |
| Geology drilled | All kind | |
| Drilling Type | DTH&Mud Rotary | |
| Drill system and operation | Hydraulic | |
| Hole Diameter | mm | φ90-φ450 |
| Hole Depth | m | 200 |
| Rotation Torque | Nm | 4500-6500 |
| Rotation Speed | rpm | 0-90 |
| Drill pipe diameter | mm | 76/89/102/114 |
| Drill pipe length | mm | 3000 |
| Max. Feed Speed | M/min | 18 |
| Max. Lifting Speed | M/min | 5-12 |
| Feed Stroke | mm | 3400 |
| Max.Lifting Force | Ton | 14 |
| Lifting force of Main Winch(Optional) | T | 4 |
| Lifting force of Hoist | Kgs | 1500 |
| Lifting Height of Tool Winch | m | 6 |
| Engine | ||
| Diesel Engine type | YUCHAI | |
| Electrical System | Volt | 24 |
| Rated Horse power | Kw | 77 |
| Compressor required | ||
| Compressor type | Rotary Screw/Movable | |
| Pressure Required | Mpa | 1.5-2.5 |
| Air consumption | m³/min | 15-30 |
| Mud Pump(Optional) | ||
| Type | Hydraulic | |
| Model | BW450 | |
| Stroke | mm | 100 |
| Displacement | L/min | 450 |
| Discharge pressure(Mpa) | Mpa | 5 |
| Suction Tube Diameter | mm | 85 |
| Discharge Pipe Diameter | mm | 51 |
| Foam Pump | Optional | |
| Dimension | ||
| Net Weight | Kgs | 5400 |
| Transportation dimension | mm | 3950*1700*2150 |
| Ground Clearance | mm | 300 |
PRODUCT CONFIGURATION
|
|
|

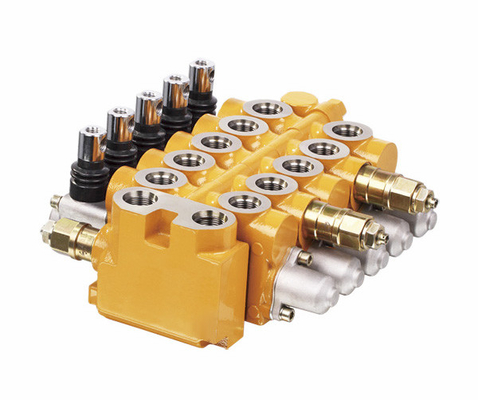

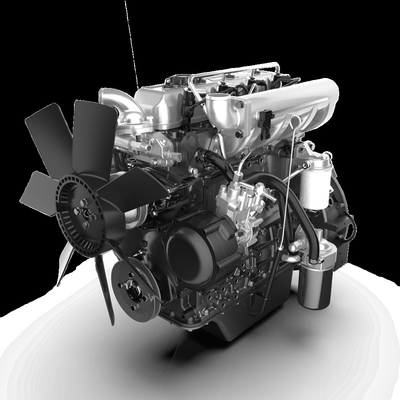

| Famous Hydraulic Control Valve | YUCHAI 70KW Engine | High power hydraulic pump |
|
|
|
| High Hydraulic Support Leg | Heavy Duty Rubber Crawler | 1.5Ton Hydraulic Tool Winch |
PRODUCTS LOADING
|
|
|
SUCCESSFUL PROJECT
