| Brand Name: | JCDRILL |
| Model Number: | CWD1600 |
| MOQ: | 1Set |
| Price: | Negotation |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 2000set/year |

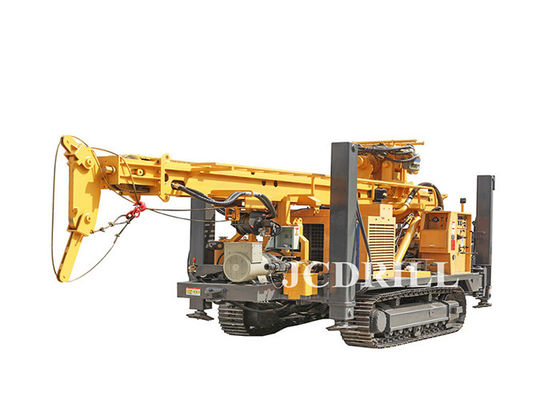

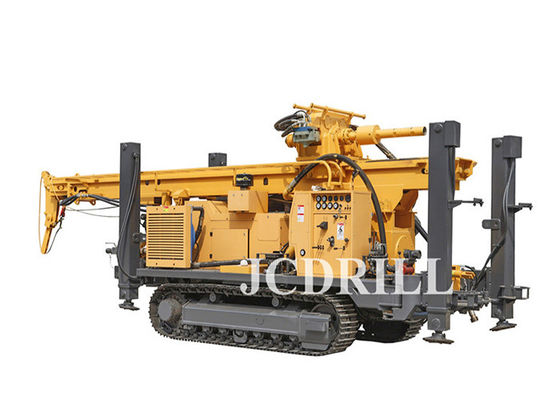

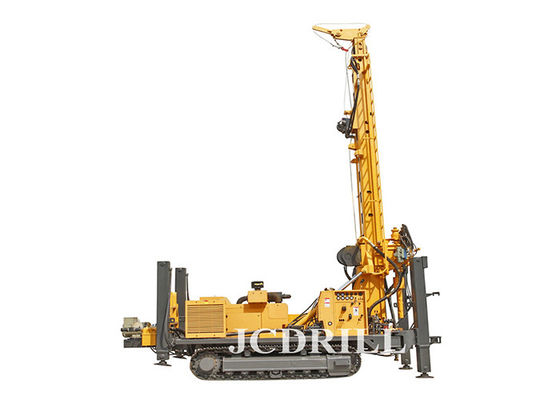

CWD1600 Ground New Track Water Well Drilling Machines for 1600 Depth
CWD1600 series of water well drilling machine has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been recognized by the market once it is launched, and has been widely used in water engineering construction, civil drilling, geothermal drilling and other fields.They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.
| 1 | Geology drilled | All kinds | |
| 2 | Drilling Type | DTH & Mud Rotary | |
| 3 | Drill system and operation | Hydraulic | |
| 4 | Hole Diameter | mm | Φ105—Φ1000 |
| 5 | Hole Depth | m | 1600 |
| 6 | Rotation Torque | N/M | 24500 |
| 7 | Rotation Speed | rpm | 0-100 |
| 8 | Drill pipe diameter | mm | 114/127 |
| 9 | Drill pipe length | mm | 6000 |
| 10 | Max. Feed Speed | M/min | 0-44 |
| 11 | Max. Lifting Speed | M/min | 5-23 |
| 12 | Feed Stroke | mm | 7600 |
| 13 | Max. Lifting force | Ton | 81 |
| 14 | Max.Pulldown Force | Ton | 13 |
| 15 | Lifting force of hoist | T | 1.5 |
| 16 | Lifting height of tool winch |
m | 40 |
| Engine | |||
| 17 | Diesel Engine type | CUMMINS | |
| 18 | Rated Horse power | Hp | 360 |
| 19 | Electrical System | Volt | 24 |
| Compressor required(Optional) | |||
| 20 | Compressor Type | Rotary Screw/Movable | |
| 21 | Pressure Required | Mpa | 1.65—8 |
| 22 | Air consumption | m³/min | 16-120 m³/min |
| Mud Pump(Optional) | |||
| 23 | Type | Hydrulic | |
| 24 | Model | BW1500/12 | |
| 25 | Stroke | mm | 150 |
| 26 | Displacement | L/Min | 1500 |
| 27 | Discharge pressure (Mpa) | Mpa | 12 |
| 28 | Suction tube diameter | mm | 76 |
| 29 | Discharge pipe diameter | mm | 51 |
| Dimension | |||
| 30 | Net Weight | T | 30 |
| 31 | Shipping Length | mm | 8600 |
| 32 | Shipping Width | mm | 2600 |
| 33 | Shipping Height | mm | 3500 |
| 34 | Ground Clearance |
mm | 300 |
Application
Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
