| Brand Name: | JCDRILL |
| Model Number: | JXY600 |
| MOQ: | 1Set |
| Price: | Negotation |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 2000set/year |

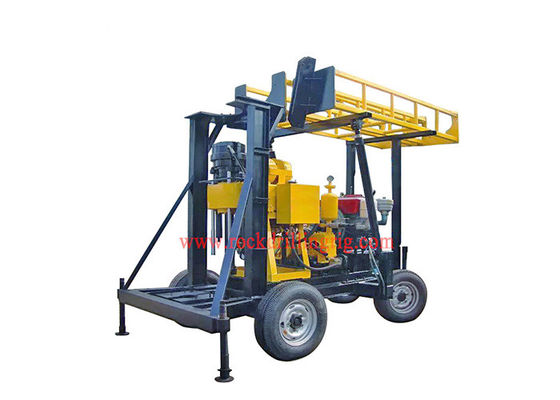

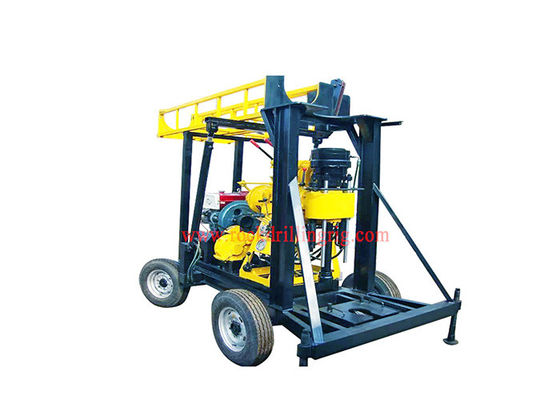

600m Water Well Drilling Rig Machine for Diamond Core Drill JXY600
The spindle trailer type water well drilling rig is equipped with a pressure gauge instructions at the bottom
of the bore pressure, easy to master the hole.The drilling rig has 8 grades forward rotation speed and 2
grades reverse rotation speed, wide speed adjustable range. Compact mechanical transmission
structure, light weight, large diameter of spindle bore, hydraulic stabilizer legs, good rigidity. Falling tower
for hydraulic operation, convenient and reliable.
Specification
| Drilling depth | m | 75 | 219 | 273 | 500 | 600 |
| Drilling Dia. | mm | 600 | 210 | 150 | 80 | 60 |
| Open hole Dia. | mm | 600 | ||||
| End hole Dia. | mm | 75 | ||||
| Drilling rod | mm | 42,50,60,76 | ||||
| Drilling angle | 65-90° | |||||
| Rotary Spindle | ||||||
| Spindle forward speed | r/min | 30-1050 | ||||
| Spindle reverse speed | r/min | 29-137 | ||||
| Spindle stroke | mm | 560 | ||||
| Spindle inner diameter | mm | 96 | ||||
| Spindle lifting capacity | Kg | 6000 | ||||
| Spindle Max.Torque | N/M | 3800 | ||||
| Main Winch (Hydraulic) | ||||||
| Single line lifting speed | m/s | 0.5-1.9 | ||||
| Tightrope diameter | mm | 12.5 | ||||
| Hoist single line lifting capacity | Kg | 4000 | ||||
| Roller diameter | mm | 300 | ||||
| Roller cubic measure | m | 50 | ||||
| Tools Winch | ||||||
| Tightrope diameter | mm | 6 | ||||
| Roller diameter | mm | 140 | ||||
| Roller cubic measure | m | 450 | ||||
| Drilling rig Power(choose one between the following two) | ||||||
| Diesel engine | kw/hp | 38/50 | ||||
| Electric motor | KW | 22kw | ||||
| Trailer | ||||||
| Loading Capacity | T | 4 | ||||
| Walking Speed | km/h | 25 | ||||
| Mini turning radius | m | 6.8 | ||||
| Weight&Size | ||||||
| Weight | kg | 3000 | ||||
| Dimension | mm | 3700×1850×3200 | ||||
Shipping
Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series,
in this system, technology date and problem solve solution and preventive measures will be provided in
any maintain project, all the spare parts will be used in new OEM products with installation instructions,
packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the
order confirmation, last for the working life of the equipment.
