| Brand Name: | JCDRILL |
| Model Number: | TWD100B |
| MOQ: | 1 set |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000set/year |

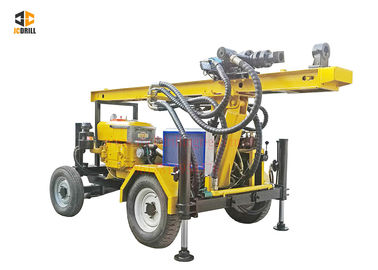

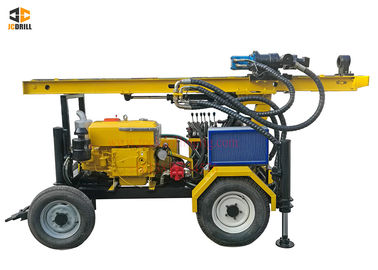

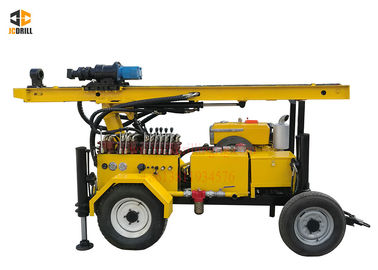

110m Small Portable Hydraulic 4 Wheels Dth Drilling rig For Water Well
Application
TWD100B water well drilling machine The drilling rig adopts two-wheeled trailer type, which makes the transition convenient and quick.TWD100B mainly suitable for drilling small-aperture wells, geothermal air-conditioning holes and other wells, especially for water intake projects in mountainous and rock formations
Characteristics
1. TWD100B combines an onboard power pack, drill pipe storage and foam pump on a single axle trailer. This makes for a quick set up in most locations and is an ideal multipurpose rig for many water well drilling operations.
2. TWD100B has mud pump built in this high head pump can drill deeper faster than alternative skid mounted
centrifugal mud pumps and takes its power direct from the trailer power pack.
3. The machine is compact in structure and convenient to carry. The whole machine adopts full hydraulic drive andhas low failure rate.
4. The tower assembly has a hydraulic compensation mechanism. When the tower is grounded
during construction, the bearing capacity is greater and the stability is higher
Specification
| 1.Overall parameters | |
| Drilling depth | 110 m |
| Maximum open hole caliber | 90-215 mm |
| Diameter of drill rod | 60/76 mm x 1.5 m (2m optional) |
| Drilling angle | 90~75 |
| Weight | 1950 kg |
| Dimension | 3350*1700*1900mm |
| 2. Rotation | |
| Rotation torque | 1200 N-m |
| Speed | 60-120 rpm |
| Head travel | 1.95 meter |
| 3.Diesel Engine | |
| Power | 24 KW |
| MODEL | AMEC |
| 4.Mud pump(on Board) | |
| Flow capacity | 160 liter/min |
| Max. working pressure | 10 bar |
