89mm 3.5'' Drill Pipe DTH Drilling Tools For Water Well Drilling / Mining

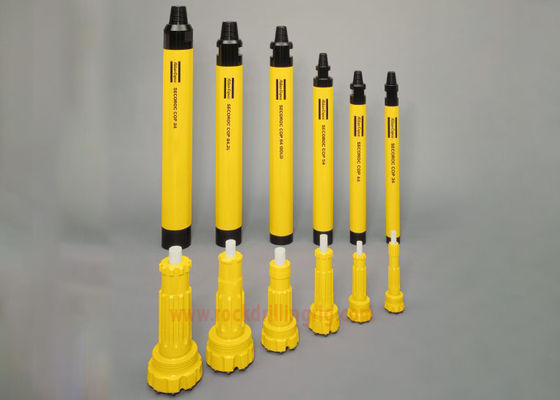

JCDRILL DTH Hammer
Description
HR series DTH Hammer, a kind of valve equipped low air pressure hammer with a single piston, a plate valve and a central exhaust structure.
The compressed air is adopted as the driving force. To get a better performance and prevent dust pollution, some high-pressure water may be added into the air for wet rock drilling.
It is mainly featured in:
1.The strong energy of single impact and the low energy consumption in rock crushing.
2.The weight ratio of piston and bit almost reaches 1:1 to provide long effective acting time, which leads to the improved efficiency in rock crushing and the extended service life of the drilling tool.
3.A good performance in central air exhaust and cutting discharge, which reduces the repeated crushing of rock.
4.Acheck valves device is available to drill holes under water.
The HR series DTH Hammer, an ideal drilling tool, is widely used in such industries relating to energy,construction,metallurgy,building etc.
Application
| Hammers | Bit Shank | Connection Thread | Suitable bit | Working pressure | Air consumption | |
| 1-3" Middle-low pressure DTH hammers |
BR1 BR2 BR3 |
RD40 box RD50 box API 2 3/8" Reg |
Φ64-Φ76mm Φ70-Φ90mm Φ90-Φ110mm |
0.7-1.75Mpa | 0.7 Mpa | 4.5 m3/min |
| 1.0 Mpa | 4 m3/min | |||||
| 1.4 Mpa | 5 m3/min | |||||
| 3" hammers | DHD3.5 COP32/COP34 M30 |
API 2 3/8"Reg | Φ90-Φ110mm | 1.0-1.5Mpa | 1.0 Mpa | 4.5 m3/min |
| 1.5 Mpa | 9 m3/min | |||||
| 4" hammers | DHD340 COP44 QL40 SD4 M40 |
API 2 3/8"Reg | Φ105-Φ130mm | 1.0-2.5Mpa | 1.0 Mpa | 6 m3/min |
| 1.8 Mpa | 10 m3/min | |||||
| 2.4 Mpa | 15 m3/min | |||||
| 5" hammers | DHD350 COP54 QL50 SD5 M50 |
API 2 3/8"Reg API 3 1/2"Reg |
Φ130-Φ156mm | 1.0-2.5Mpa | 1.0 Mpa | 9 m3/min |
| 1.8 Mpa | 15 m3/min | |||||
| 2.4 Mpa | 23 m3/min | |||||
| 6" hammers | DHD360 COP64 QL60 SD6 M60 |
API 3 1/2"Reg | Φ152-Φ203mm | 1.0-2.5Mpa | 1.0 Mpa | 10 m3/min |
| 1.8 Mpa | 20 m3/min | |||||
| 2.4 Mpa | 28.5 m3/min | |||||
| 8" hammers | DHD380 COP84 QL80 SD8 M80 |
API 4 1/2"Reg | Φ200-Φ279mm | 1.0-2.5Mpa | 1.0Mpa | 15m3/min |
| 1.8Mpa | 26m3/min | |||||
| 2.4Mpa | 34m3/min | |||||
| 10" hammers | SD10 NUMA100 |
API 6 5/8"Reg | Φ254-Φ330mm | 1.0-2.5Mpa | 1.0Mpa | 22m3/min |
| 1.8Mpa | 40m3/min | |||||
| 2.4Mpa | 55m3/min | |||||
| 12" hammers | DHD1120 SD12 NUMA120 NUMA125 |
API 6 5/8"Reg | Φ305-Φ381mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
| 1.8Mpa | 56m3/min | |||||
| 2.4Mpa | 78m3/min | |||||
DTH hammers specifications:
If you need more details,please feel free let me know by email:sales3@rockdrillingrig.com.
Business Information
| Minimum Order Quantity: | N/A |
| Price: | Negotation |
| Packaging Details: | Standard Export Delivery Package |
| Delivery Time: | 7days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | Based on Detailed Order |
Certification
Delivery
FAQ
1. Shipping time for an order
We have many stock. As usual, we can delivery the goods as soon as we get the full payment.
2. Quality Control
Strict inspection and testing for every order before shipping out .
3.How can we trust your company?
We support Alibaba trade insurance. Protect products quality, shipment on time and your covered amount.
