| Brand Name: | JCDRILLS |
| Model Number: | DM100A |
| MOQ: | 1Set |
| Price: | Negotation |
| Payment Terms: | T/T, L/C, D/P, Western Union, MoneyGram |
| Supply Ability: | 2000Set/year |

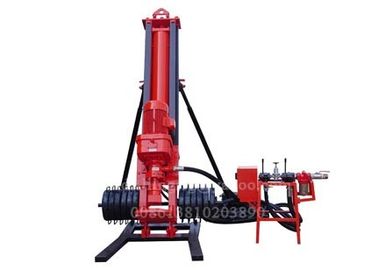

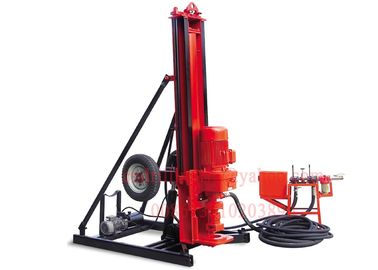

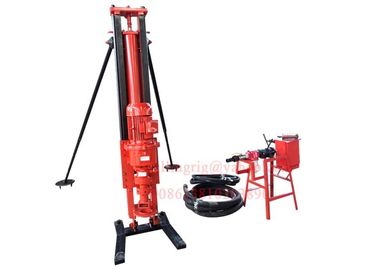

Electricity power Portable Pneumatic DTH Drilling Rig for Quarry Mining Construction Drilling DM100B
Characteristics
1. Compact structure, easy operation
2. Fasting drilling, high efficiency
3. Easy to disassemble, flexible movement
4. Good economic benefits
Application
The rock blasting drilling rig DM100A/B is high powered with easy operation system. The pneumatic drill could be applied in open mine, water and electricity projects, railway and highway construction project. Within rock hardness range f=8-16,the quarry drilling machine can reach a higher drilling speed; the rubber hose braided with steel wire could bear high pressure; anchor holes could use on the two sides of slides by the M42X10X1.5 screw holes, which also could be used to fix optional (XQ) sled bearing drill holes 0 ° -90 °; or work with vertical shaft underground and Channel drilling 0°-360°borehole and ventilation, drain holes.The construction drilling equipment DM100A/B is really a gear helping hands for you to improve efficiency.
Specifiction
| MODEL | DM100A | DM100B |
| Air pressure(Mpa) | 0.5-0.7 | 0.5-0.7 |
| Hole diameter(mm) | 75-130 | 75-130 |
| Air consumption(m3/min) | 9-17 | 6-12 |
| Hole depth(m) | 20 | 20 |
| Feed Stroke(m) | 1 | 1 |
| Lifting power(N) | 600 | 600 |
| Rotation Speed(r/min) | 0-80 | 110 |
| Rock hardness | f=8-16 | f=8-16 |
| Drive mode | Wind motor | Motor(Electricity) |
| Rated power(kw) | 4 | 4 |
| Drill pipe | φ50×1m | φ50×1m |
| Size | 2700×450×630 | 2700×420×610 |
| Weight(kg) | 245 | 300 |
Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for
the working life of the equipment.
