| Brand Name: | Liutech |
| Model Number: | LUY215-21 |
| MOQ: | 1Set |
| Price: | Negotation |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 2000Set/Year |

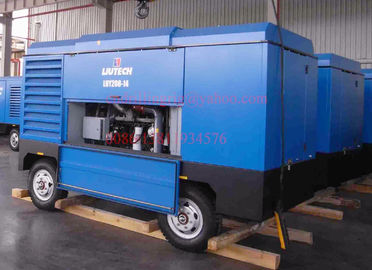

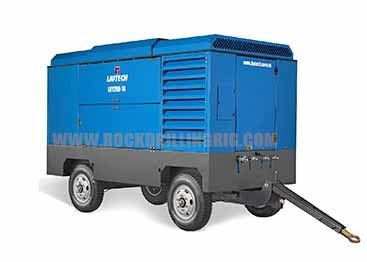

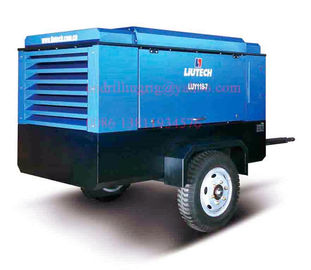

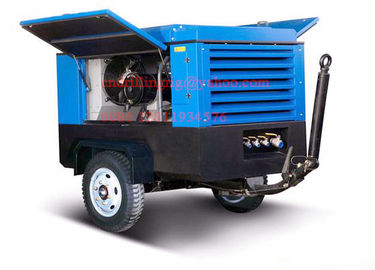

Liutech Portable Screw Air Compressor For Hole Drilling Diesel Engine Driven
Application
Liutech is wholy-owned subsidiary of Atlas Copco,it’s air compressor driven by diesel engine and electricity, it’s 90% spare parts originally imported from Atlas Copco,so the liutech portable screw air compressor are Europen quality, Chinese price.
Characteristics
High efficiency
The combination of a high efficient engine and the Atlas Copco compressor element guarantees high efficiency and reduced wear.
Low operational cost, high fuel autonomy
A stepless and fully automatic regulator varying the engine speed ensures a reduced power and fuel consumption.
We are agent of portable double screw air compressor of Atlas Copco,Sullair, Liutech,by which ,we can provide drilling rig users with high quality professional drill rig air compressor solution and relative after-sales service also.
Specification
| Model | Nominal volume flow m3/min(CFM) | Working Pressure bar/psi | Engine | Outlet Valve Configuration |
| LUY025-7 | 2.5/88 | 7/102 | KUBOTA D1105 | 2*G3/4 |
| LUY055-7 | 5.3/187 | DEUTZ D2011L03 | 3*G3/4 | |
| LUY079-7 | 7.9/275 | 4BT3.9C80 | 3*G3/4 1*G1 1/2 | |
| LUY085-14 | 8.5/300 | 14/204 | 4BT3.9-C130 | 3*G3/4 1*G1 1/2 |
| LUY100-10 | 10/350 | 10/146 | 4BT3.9-C130 | 3*G3/4 1*G1 1/2 |
| LIU100-12 | 10/350 | 12/175 | 4BT3.9-C130 | 3*G3/4 1*G1 1/2 |
| LUY108-7 | 10.8/380 | 7/102 | 4BT3.9-C130 | 3*G3/4 1*G1 1/2 |
| LUY118-7 | 11.8/400 | 7/102 | 4BT3.9-C125 | 3*G3/4 1*G1 1/2 |
| LUY120-14 | 12/424 | 14/203 | 6BTA5.9-C180 | 3*G1 1/4 1*G2 |
| LUY161-14 | 16.5/582 | 14/203 | 6CTA8.3-C230 | 3*G1 1/4 1*G2 |
| LUY184-12 | 18.4/650 | 12/174 | 6CTA8.3-C230 | 3*G1 1/4 1*G2 |
| LUY202-10 | 21.2/748 | 10/145 | 6CTA8.3-C230 | 3*G1 1/4 1*G2 |
| LUY214-9 | 21.4/756 | 8.6/125 | 6CTA8.3-C230 | 3*G1 1/4 1*G2 |
| LUY239-7 | 23.9/844 | 7/102 | 6CTA8.3-C230 | 3*G1 1/4 1*G2 |
| LUY208-14 | 21.8/769 | 14/203 | 6LTAA8.8-C315 | 3*G1 1/4 1*G2 |
| LIUY230-12 | 23/812 | 12/174 | 6LTAA8.8-C315 | 3*G1 1/4 1*G2 |
| LUY250-10 | 25/883 | 10/145 | 6LTAA8.8-C315 | 3*G1 1/4 1*G2 |
| LUY270-9 | 27/954 | 8.6/125 | 6LTAA8.8-C315 | 3*G1 1/4 1*G2 |
| LUY290-9 | 29/1024 | 8.6/125 | 6LTAA8.8-C315 | 3*G1 1/4 1*G2 |
| LUY180-19 | 18/636 | 19/276 | 6CTAA8.3-C260 | 1*G2 1*G3/4 |
| LUY215-21 | 21.8/769 | 21/306 | 6CTAA8.8-C315 | 1*G2 1*G3/4 |
| LUY231-17 | 23.1/816 | 17/247 | 6CTAA8.8-C315 | 1*G2 1*G3/4 |
| LUY130-17 | 13/460 | 17/246.5 | 6BTAA5.9-C205 | 1*G2 1*G3/4 |
| LUY180-19 | 18/636 | 19/276 | 6CTAA8.3-C260 | 1*G2 1*G3/4 |
| LUY215-21 | 21.8/769 | 21/306 | 6CTAA8.8-C315 | 1*G2 1*G3/4 |
| LUY231-17 | 23.1/816 | 17/247 | 6CTAA8.8-C315 | 1*G2 1*G3/4 |
Customer case
Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
